(P-919) Maxi-Mesa Downdraft/Backdraft Table 1.4m with side panels. Extraction Arm 2m/Ø160mm. Vertical flat-bar irons as Table Surface.

  • Sale
  • Regular price €5.800,00

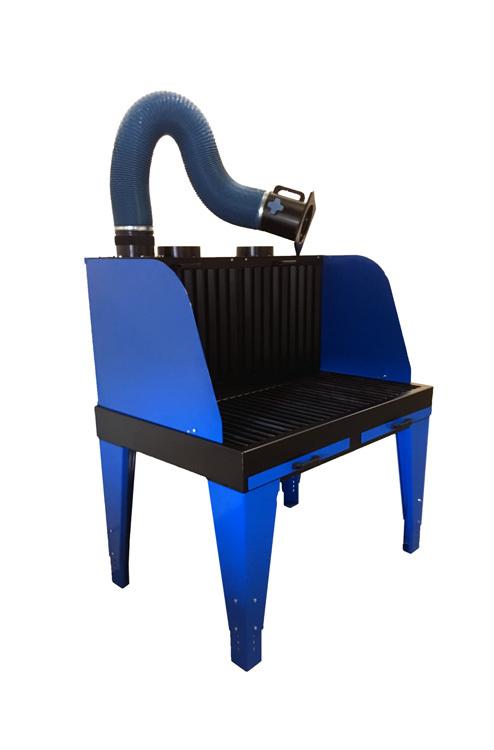

Maxi-Mesa 1.4m with side panels and vertical flat-bar irons

Maxi-Mesa is a modern combined Backdraft and Downdraft Table with built in regulating Damper. 1.4m model.

Dust, Fume and Gases.
Maxi-Mesa is suitable for welding and heavier grinding. It extracts backwards and downwards. Can be used in many other applications.

Unique regulating Damper.
Maxi-Mesa is by default equipped with a regulating damper which makes it possible to adjust the width of the vertical openings of the backdraft panel. You can quickly adjust the total air volume between backdraft and downdraft with a handle on the front side.

Extraction Arm.
For heavy welding the Maxi-Mesa can be equipped with a Flexi FLB 1.5m extraction arm. Thanks to the unique regulating damper the total air volume can be divided between backdraft, downdraft and extraction arm.

Heavy Grinding.
For heavy grinding the Maxi-Mesa with a table top of vertical 40x5mm flat bar-irons should be used. Hot particles and sparks will fall down into the dust drawers. The main air volume should go through the backdraft panel and, if fitted, the extraction arm, to catch hot fume, dust and gases which are going upwards.

Strongly designed
Maxi-Mesa is designed with 2 and 3mm steel-sheet. The table height can be adjusted from 800-950mm. The side panels can be opened for long objects. Suitable air volume for 1m table is 1500-2000m3/h and for 1.4m table 2000-3000m3/h. It shall be connected with an external fan and extraction system. Connection diameter is 199mm outside.


Questions? Please Call Alfi Ab at +46 40 700 15 or email: info@alfiab.com
