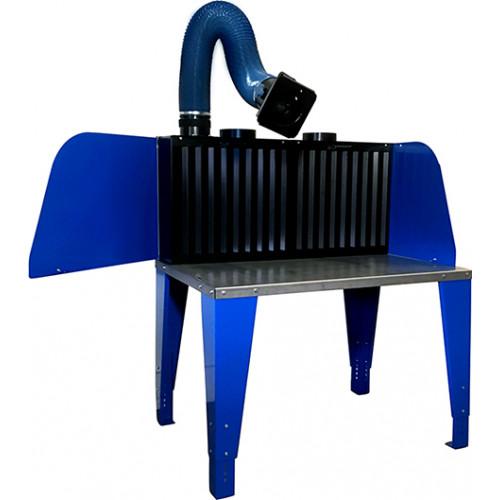

(P-917) Super-Mesa 1.4m Backdraft Table with side panels and 3m/Ø160mm Extraction Arm

  • Sale
  • Regular price €4.300,00


Super-Mesa. 1.4m

Super-Mesa is a modern Backdraft Table with built-in regulating Damper. 1.4m model.

Dust, Fume and Gases.
Super-Mesa is suitable for welding and grinding. It can also be used be used in many other applications where dust, fume and gases are a problem.

Funnel-shaped Extraction Openings.
The extraction is through the backdraft panel. Its vertical funnel-shaped extraction openings guarantee maximum efficiency..

Unique regulating Damper.
Super-Mesa is by default equipped with a regulating damper which makes it possible to adjust the width of the vertical openings of the backdraft panel. If an extraction arm is fitted you can easily adjust the total air volume between the arm and the backdraft panel with a handle on the front side.

Extraction Arm
For heavy welding the Super-Mesa can be equipped with a Flexi FLB 1.5m extraction arm. If it is necessary to reach outside the table, you can mount a 2m or 3m Flexi FLB extraction arm.

Good grounding.
The table surface is just oiled to give a good ground when it is used for welding.

Strongly designed.
Super-Mesa is designed with 2 and 3mm steel-sheet. The table height can be adjusted from 800-950mm. The side panels can be opened for long objects. Suitable air volume for 1m table is 1300-1700 m3/h and for 1.4m table 1500-2200 m3/h. It shall be connected with an external fan and extraction system. Connection diameter is 199mm outside.


Questions? Please Call Alfi Ab at +46 40 700 15 or email: info@alfiab.com
