(P-389) ATEX Super-PM Ø160 mm/3M (0.5m + 3m) galvanized. Stainless Steel Hood and Handle. ATEX: Ex II 2D/G

  • Sale
  • Regular price €3.850,00

"ATEX" Extraction Arm for explosive gas in Zone 1 and 2 as well as Dust in Zone 21 and 22

ATEX conformal execution for Ex-Aera 1/21 and 2/22


PVC-hose, electrically conductive 104 Ohm

Galvanized Extractor arm

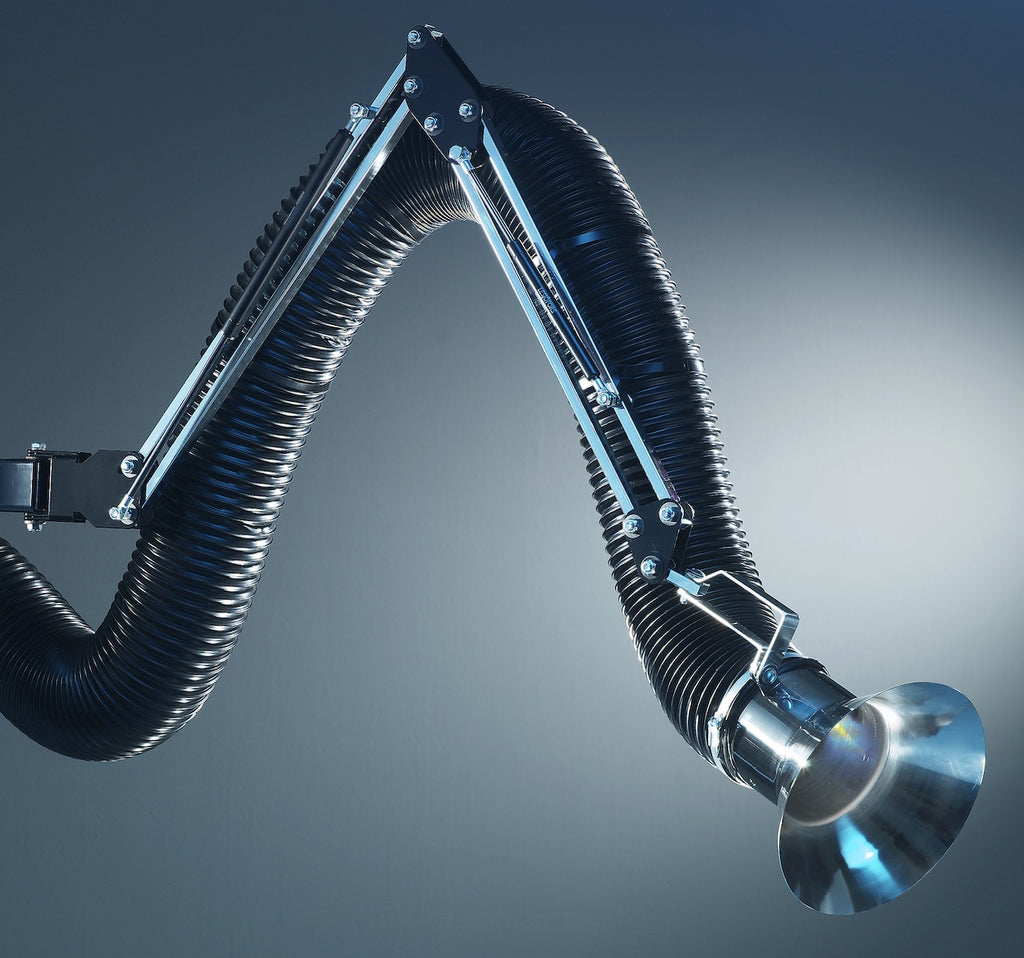

Galvanized Extractor arm with hood and handle made of acid proof mirror polished stainless steel.

Chemical-, Food- and Pharmaceutical Industry
ATEX Super-PM is made for using when controlling, measuring, weighing, filling, blending, mixing, emptying, packaging etc.

The Hood is the secret behind the efficiency
The Ø110mm hoods are developed in cooperation with one of the biggest companies in the chemical industry. The straight hood is for dust. The 67° hood is for smoke and the 150° hood is for gases. The 150° hood develops a "tornado" effect which enhances its capacity to extract gases.

The Ø160mm Hose and Hood Model
is intended for applications where 800-1200 m3/h through the extractor is needed.

All tube ends are sealed for maximum hygiene.

Perfectly balanced External hydraulically suspended parallelogram arms make the hood incredibly easy to move and 100 % stable in all positions.

40 Years Experience
40 years experience of design and manufacturing at your service.
All parts are laser cut for maximum precision.
The Plymoth products are a combination of well-proven technique and progressive new ideas.

Questions? Please Call Alfi Ab at +46 40 700 15 or email: info@alfiab.com
